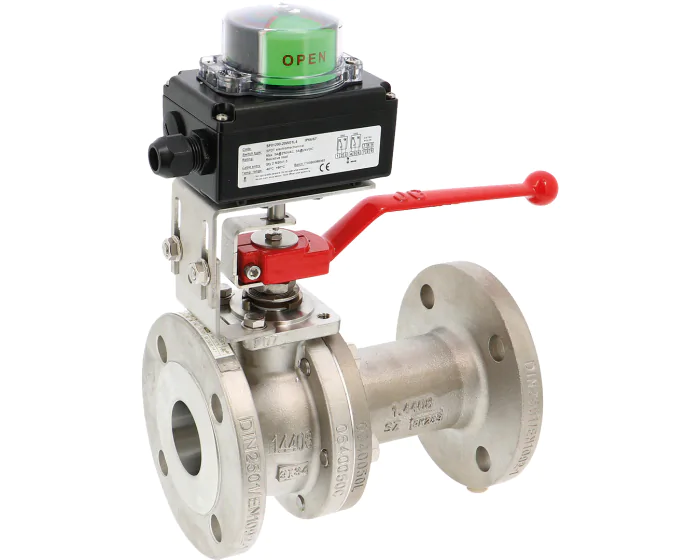

Full bore split-body valve. IP67 limit switch box. Stainless steel body and ball, graphite filled PTFE seats. Flanged attachments PN16/40 RF up to DN 50, PN16 beyond. PS: 40 bar up to DN 50, 16 bar above. Fire safe.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | PTFE |
| Switch type | dry SPDT |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 290.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Seats | PTFE-Graphite |
| TS max (°C) | 230 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | 2014/68/EU |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel CF8M (1.4408) 2-piece body DN65 - 2''1/2 Flanged PN16 | 316IIT0650462012 | S1008264 |
€1,082.64
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) 2-piece body DN80 - 3'' Flanged PN16 | 316IIT0800462012 | S1008265 |
€1,495.31
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) 2-piece body DN100 - 4'' Flanged PN16 | 316IIT1000462012 | S1008266 |
€2,019.89
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) 2-piece body DN125 - 5'' Flanged PN16 | 316IIT1250462012 | S1008267 |
€3,406.51
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) 2-piece body DN150 - 6'' Flanged PN16/40 | 316IIT1500462012 | S1008268 |
€4,507.36
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) 2-piece body DN15 - 1/2'' Flanged PN16/40 | 340IIT0150462012 | S1008269 |
€469.20
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) 2-piece body DN20 - 3/4'' Flanged PN16/40 | 340IIT0200462012 | S1008270 |
€525.30
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) 2-piece body DN25 - 1'' Flanged PN16/40 | 340IIT0250462012 | S1008271 |
€567.11
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) 2-piece body DN32 - 1''1/4 Flanged PN16/40 | 340IIT0320462012 | S1008272 |
€678.34
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) 2-piece body DN40 - 1''1/2 Flanged PN16/40 | 340IIT0400462012 | S1008273 |
€775.20
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) 2-piece body DN50 - 2'' Flanged PN16/40 | 340IIT0500462012 | S1008274 |
€944.51
(excl. btw)
|
add to cart |
